Description

EP1839-SE2L-AdvancedOptimized safety level for harsh environments

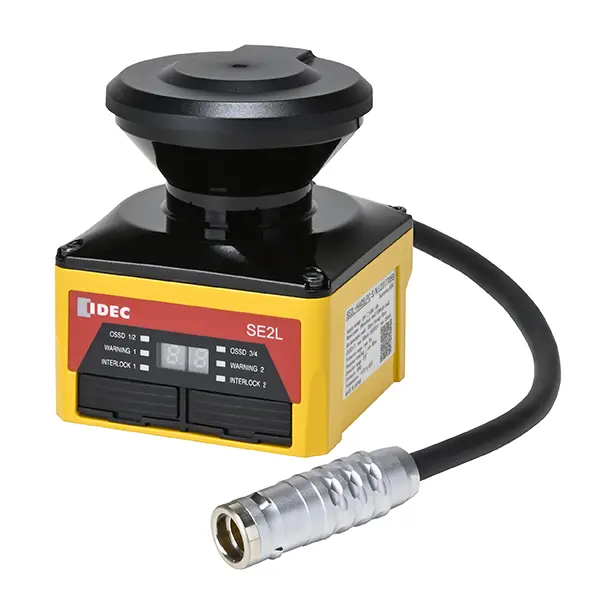

The SE2L Advanced is a compact, high-performance safety laser scanner with increased durability. It maintains stable, accurate detection in tough environments, across the protection zone and up to 2 warning zones.
Driving the evolution of wireless AGVs/AMRs
Improved Ethernet connectivity helps users to connect their SE2L Advanced scanner to a PC via Wi-Fi for configuration and monitoring. Link the scanner to the AGV/AMR’s Ethernet access point with a LAN or USB cable to enable wireless connection between the scanner and the PC.
Enhanced environmental resistance
On the outside, a conductive coating on the optical window prevents dust, dirt and other air pollution from sticking to the scanner. On the inside, the scanner’s components and internal build have been improved to further reduce false positives.
Sensing area changes based on turning speed
The SE2L Advanced has 4 encoder inputs for 2-axis monitoring. This enables speed-based area switching while the AGV/AMR the scanner is mounted on is turning. Improvements to the scanner’s hardware also increase the AGV/AMR’s navigational accuracy.
Comprehensive access protection and collision avoidance
• Dual protection function: the SE2L Advanced can monitor 2 separate hazardous areas and replace up to 2 light curtains.
• Reference function: Detection of position changes and reference boundaries, such as whether a door is open or closed.
• Muting function: Disables part of the protection zone so that workpieces can be brought into the area.
• Override function: Workpieces that are stopped due to false positives during muting can still be moved.
